Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

Brand Name : Trintfar

Certification : CE

Place of Origin : China

MOQ : 1

Price : 10000~80000

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 90~120

Packaging Details : Wooden brackets/wooden cases

Machinery Capacity : 25s-40s/Pcs

Precision Welding : Double welding heads for consistent results

Robust Build : Durable, handles heavy production demands

Advanced Automation : Fully automatic, reducing labor and time

Versatile Compatibility : Works with metal cutting, engraving, forging, and polishing machines.

Application : Metal Mesh Welding

Power(W) : Adjustable

Contact Now

Workflow
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

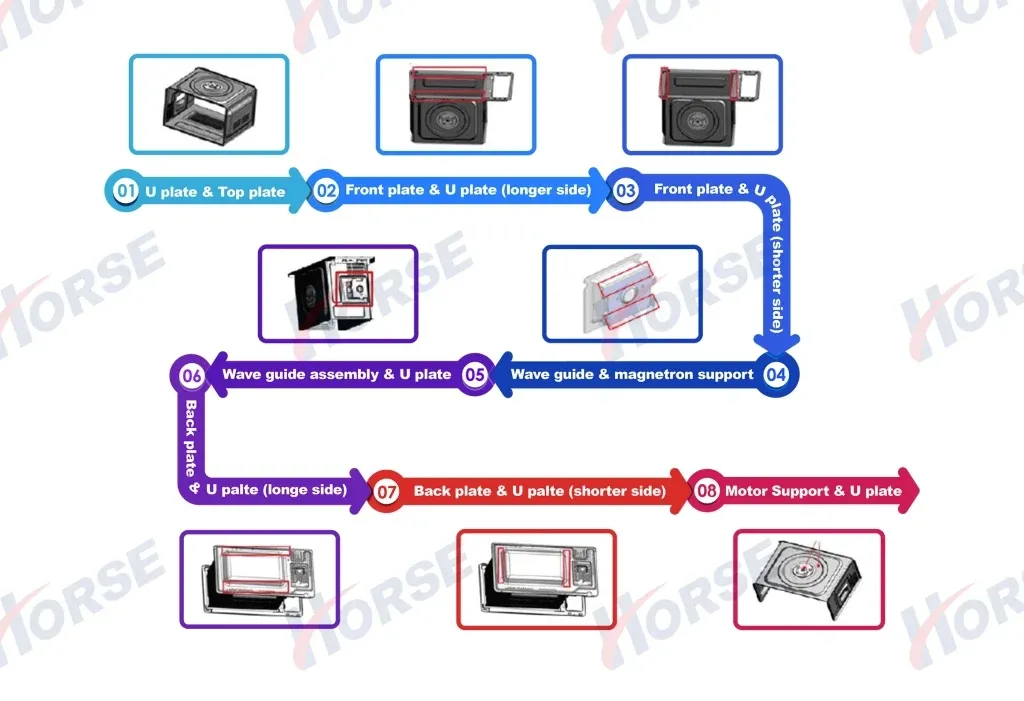

Work flow:U plate & Top plate → Front plate & U plate (longer side) → Front plate & U plate (shorter side) → Wave guide & magnetron support → Wave guide assembly & U plate → Back plate & U palte (longe side) → Back plate & U palte (shorter side) → Motor Support & U plate

Main equipments

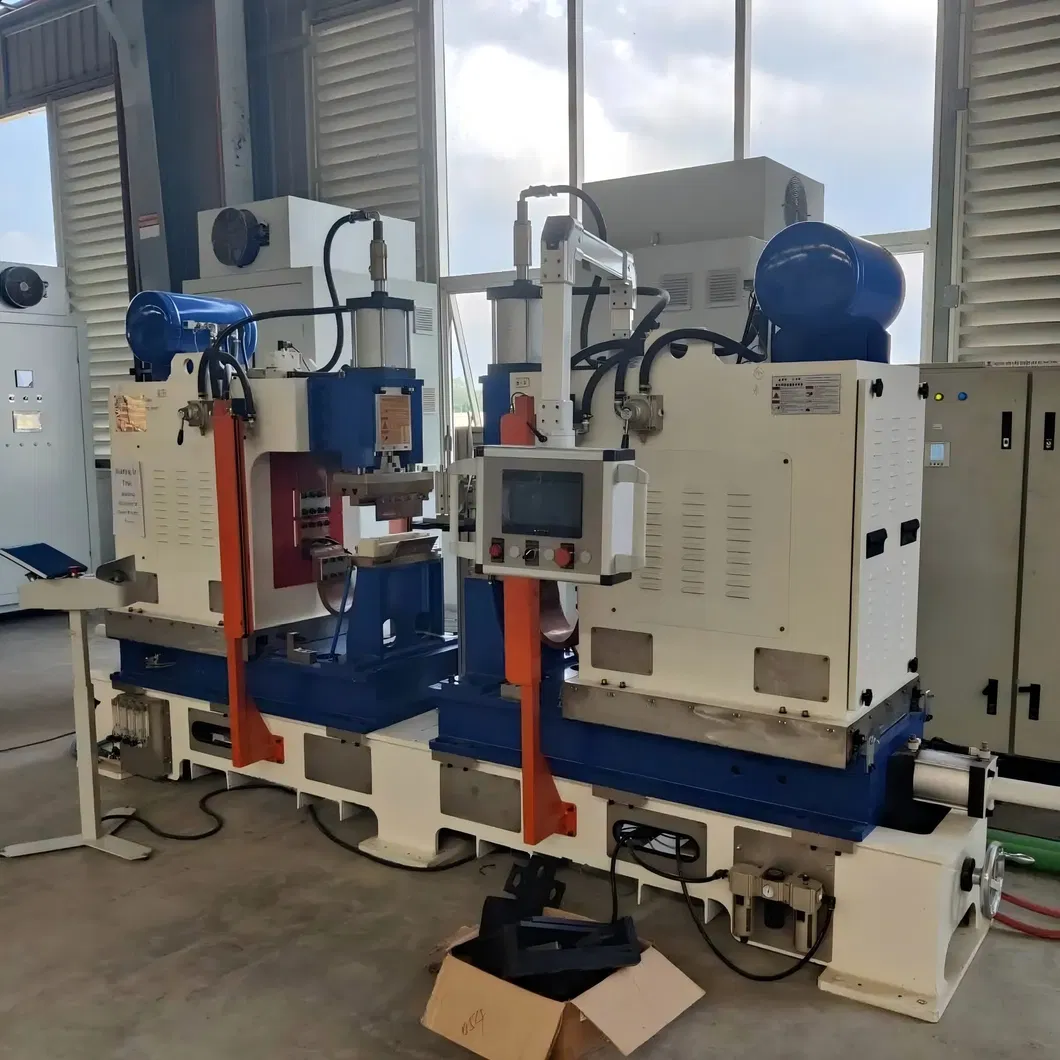

U plate and top plate welding

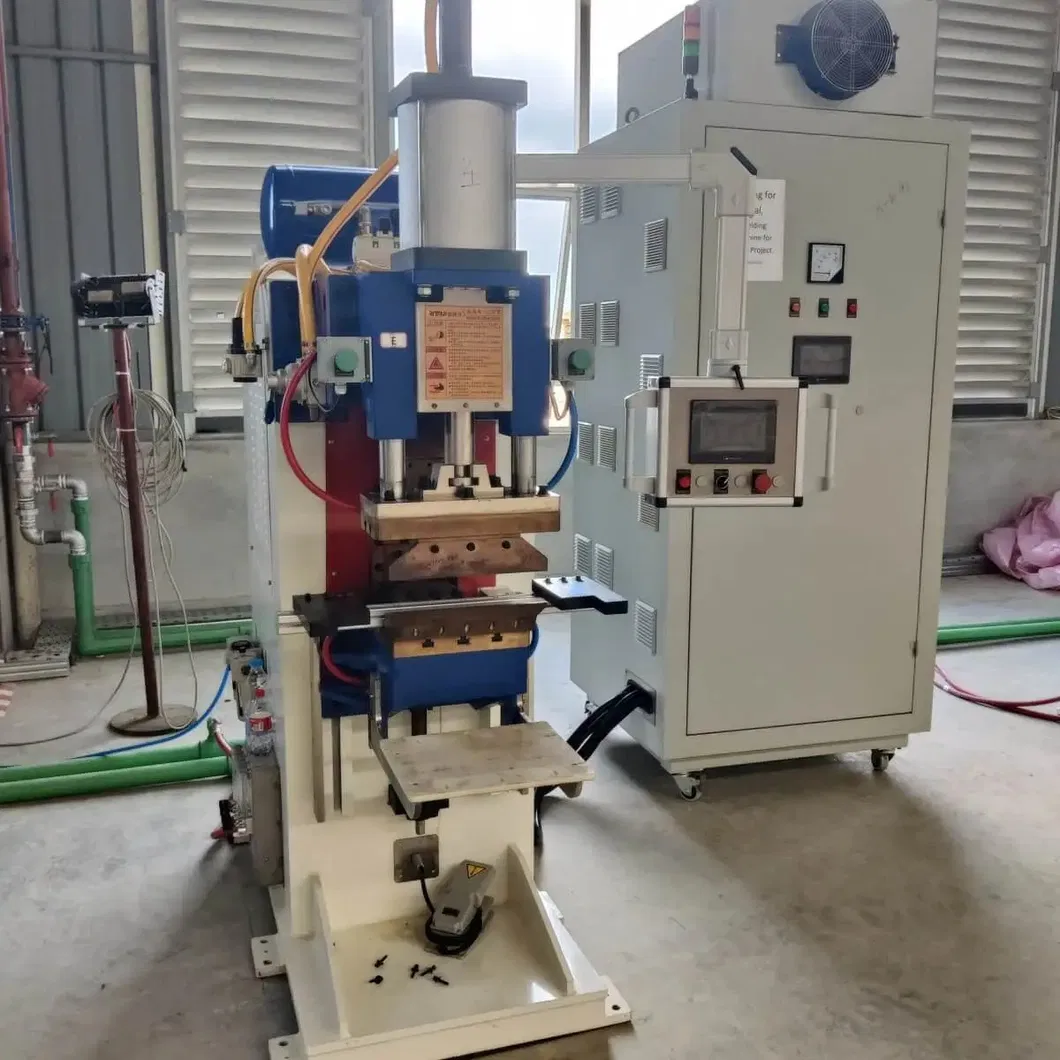

Equipment model: 2xDR-20000J-2C

Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.


U board and front board short side welding
Equipment model:2xDR-13000J-2C
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

U board and front board long side welding
Equipment model:DR-20000J-1C
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

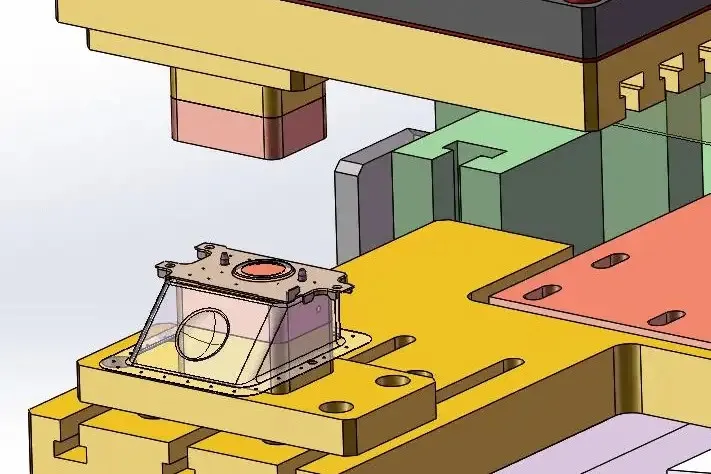

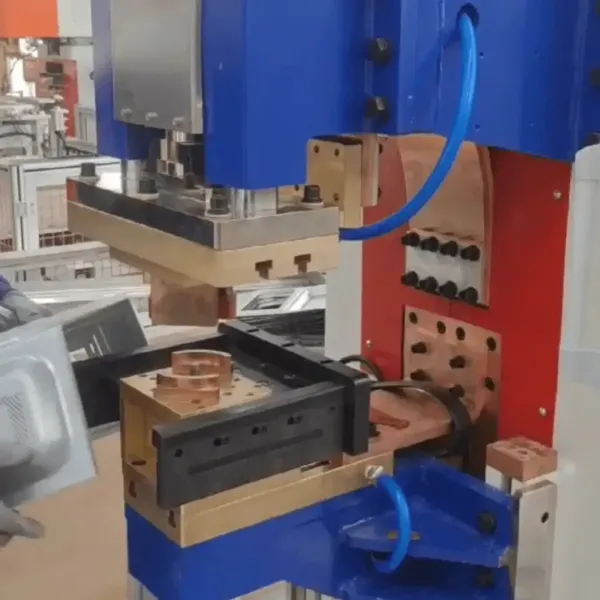

Waveguide Box and Magnetron Welding
Equipment model:DR-30000J-1C
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.


Waveguide Assembly and U Plate Welding
Equipment model:DR-30000J-1C

Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

welding the long side of the back plate with the U plate
Equipment model:DR-20000J-1C

Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

short side of the back plate and U plate welding
Equipment model:DR-13000J-1C
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

motor support welding
Equipment model: DR-13000J-1C
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.


Product Details

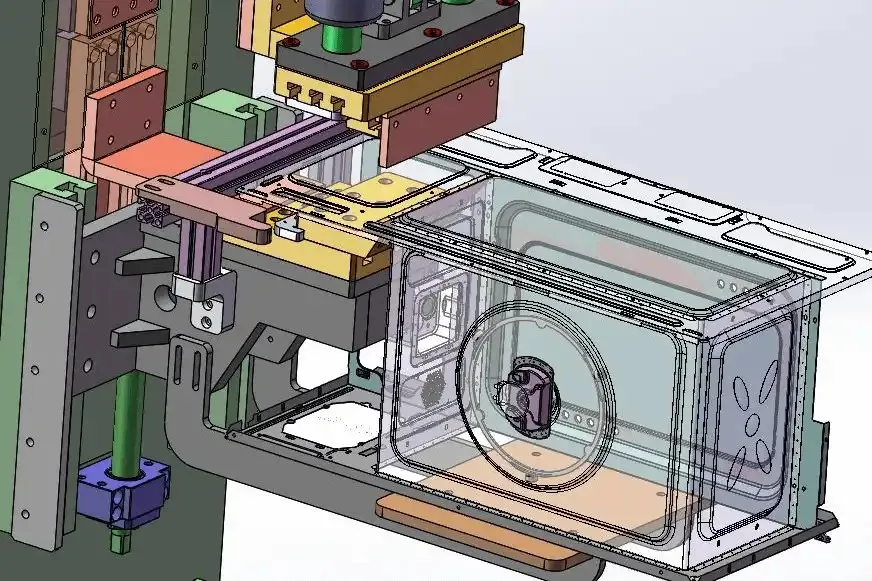

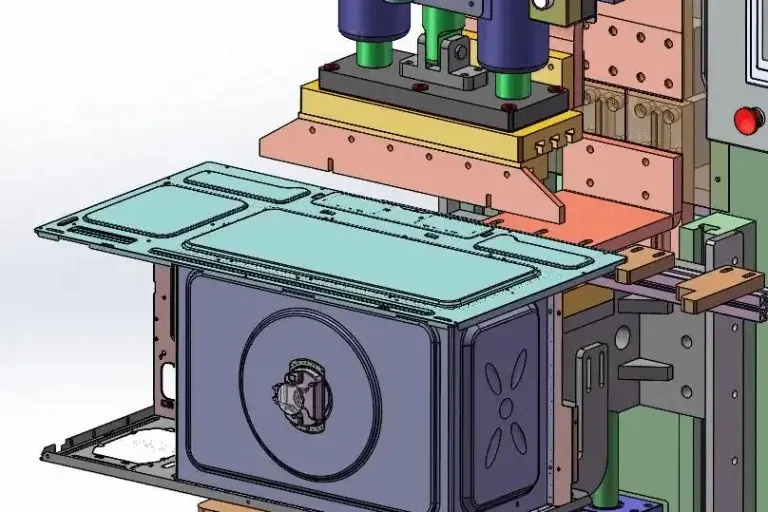

Oven Production Line Layout Diagram
Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.
Production Results

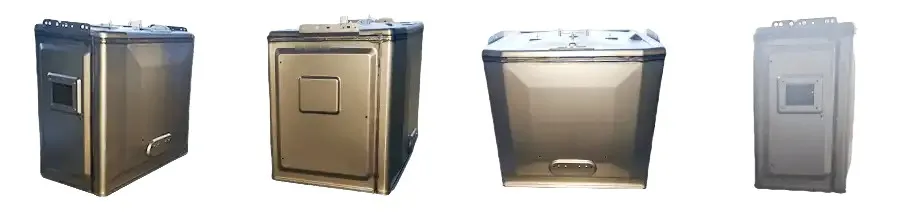

Trintfar automatic production line, used for welding the inner shells of ovens, microwave ovens and food dryers, as well as the welding machines.

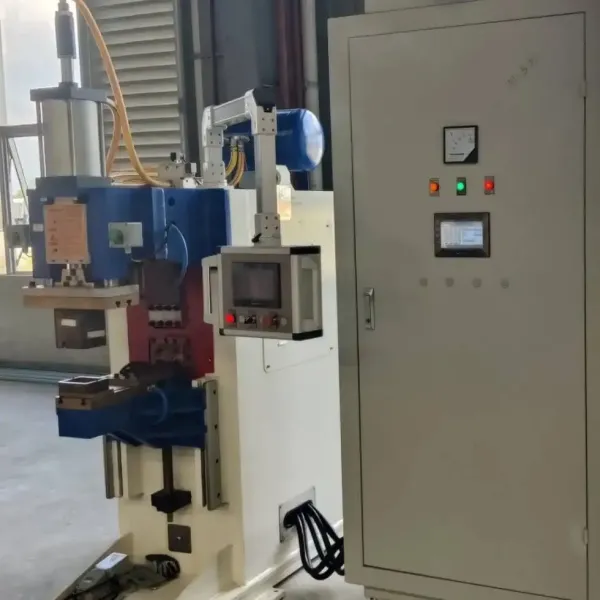

Basic Structure of DR-20000J Capacitor Energy Storage Spot Welding Machine

Components:
Frame, Pressurizing Mechanism, Water Cooling System, Welding Circuit, Capacitor Power Supply, Control System, Body, Welding Cylinder, Electrodes, Cooling Circuit, Monitoring Device, and Safety Mechanism.

  1. Frame:
    • C-frame structure, high-quality steel, and section steel.
    • Precision machining and heat treatment for rigidity and accuracy.
  2. Pressurizing Mechanism:
    • Vertical pressure type with self-lubricating bearings for better performance.
    • Minimizes electrode impact, preventing damage and wear.
  3. Pneumatic System:
    • Includes Japanese "SMC" solenoid valves, Taiwanese air processors, and oil-free cylinders.
    • Gas storage tank stabilizes pressure.
  4. Discharge Transformer & Welding Circuit:
    • Uses Wugang silicon steel sheets, and precision copper casting.
    • Soft copper tape and electrodes in series.
  5. Main Control System:
    • Mitsubishi PLC and HMI.
    • Manual, automatic, and charging modes.
    • Adjustable parameters via touch screen (voltage, pressure time).
  6. Welding Controller:
    • Fast charging/discharging via microprocessor.
    • Compatible with old and new capacitors, it extends capacitor life.
    • Protection modes for fault prevention.
    • Automatic adjustment for capacitor voltage and leakage current.
    • Fault detection for overcharge, discharge, and capacitor errors.
    • Stores up to 5 welding specs, count 9999 welds, real-time voltage detection (error ≤ 1%).
Technical Services
Adhere to customer-centricity and provide your company with comprehensive pre- sales and after-sales services such as installation, commissioning, training, and maintenance.

Pre-sales service: Before signing the contract, the company provides customers with various production process solutions and technical consulting services for equipment.

Installation and commissioning: According to the contract, our company will safely transport the equipment to the installation site designated by the user within the specified time, and send technical service engineers to install it on site. When the user has the basic installation and commissioning spare parts, the technical service engineer will install and debug the machine for the user to use, ensuring that the installation and commissioning site environment is neat, clean and orderly.

After-sales Training: The company offers free technical training (min. 5 days) at the buyer's site or the seller's training center. Key topics include:

-Control software usage
-Power on/off procedures
-Panel and software parameter settings
-Basic machine cleaning and maintenance
-Handling common hardware failures
-Operational precautions
Equipment maintenance

-One-year warranty after final acceptance;
-Customer service response time is within 24 hours;
-Paid repairs are provided after the warranty period.


Equipment Configuration List
No Station Name Model Quantity Unit
1 Motor bracket welding DR-13000J-1C 1 Set
2 U board and top board welding 2xDR-20000J-2C 1 Set
3 U board and front board short-side welding 2xDR-13000J-2C 1 Set
4 U board and the long side of the front board are welded DR-20000J-1C 1 Set
5 Waveguide box and magnetron welding DR-30000J-1C 1 Set
6 Waveguide assembly and U-board welding DR-30000J-1C 1 Set
7 The long side of the back plate is welded to the U plate DR-20000J-1C 1 Set
8 The short side of the back plate is welded to the U plate DR-13000J-1C 1 Set
